Description

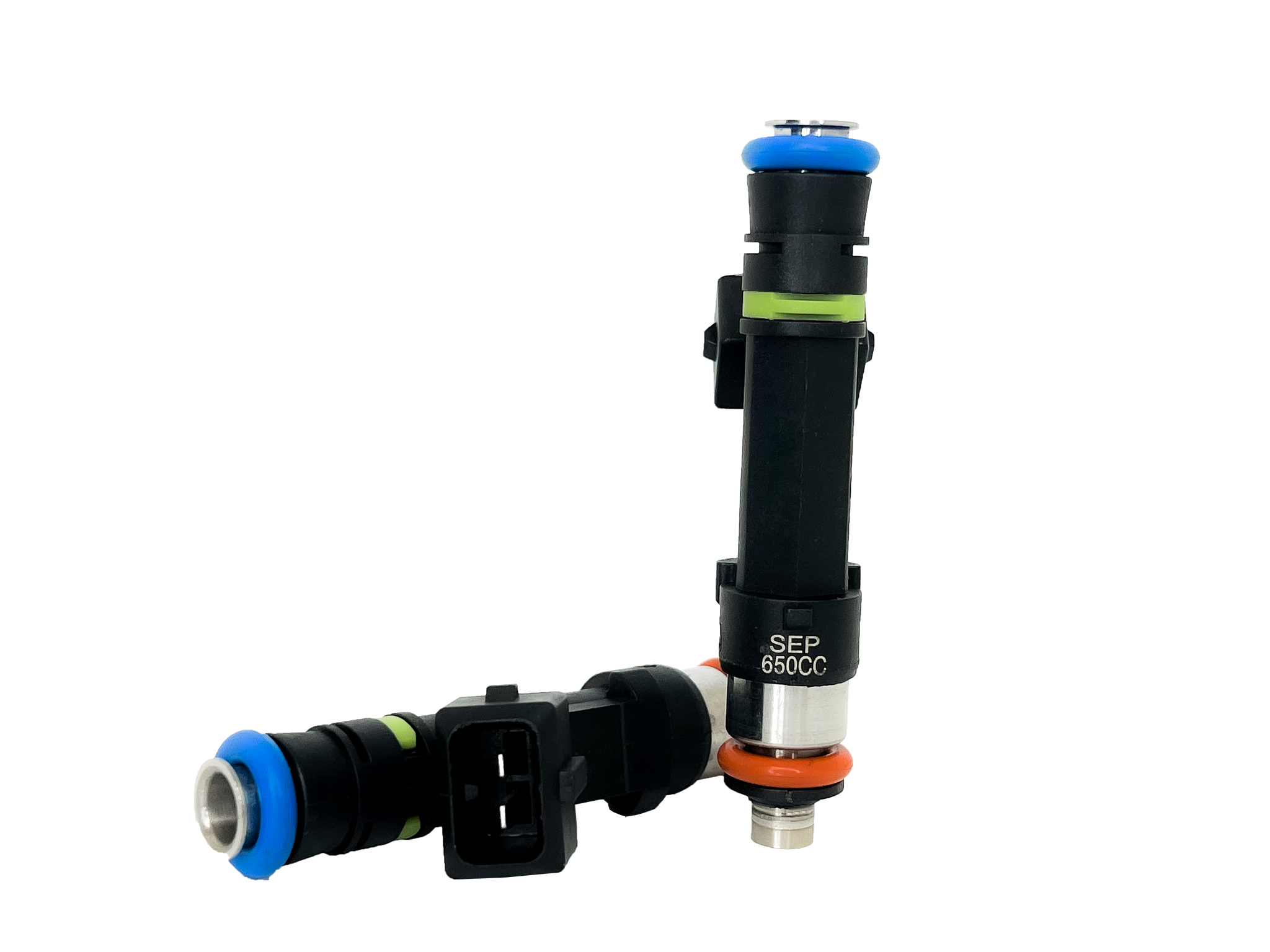

LS1 Body Length (60mm from the center of the orings) with a 14mm bottom and top oring diameter. EV1 (Jetronic) Harness Plug.

Flow/Offset Report

Sets of 4-6-8 will be matched to less than 2% variance on a dynamic test when ordered. Flow report included in package and stored in our database for future reference.

Full Injector Flow/Offset report included in package and Plug and Play ECU tuning data for all SEP Injectors included with purchase via email request. (Plug and Play ECU data/Injector characteristics provided by Calibrated Success Inc./Greg Banish)

Fuel Compatibility

Standard Gasolines and Ethanol Flex fuel

Crank Horsepower Rating @58psi fuel pressure, 93 octane, V8 engine with 1 injector per cylinder: 850hp

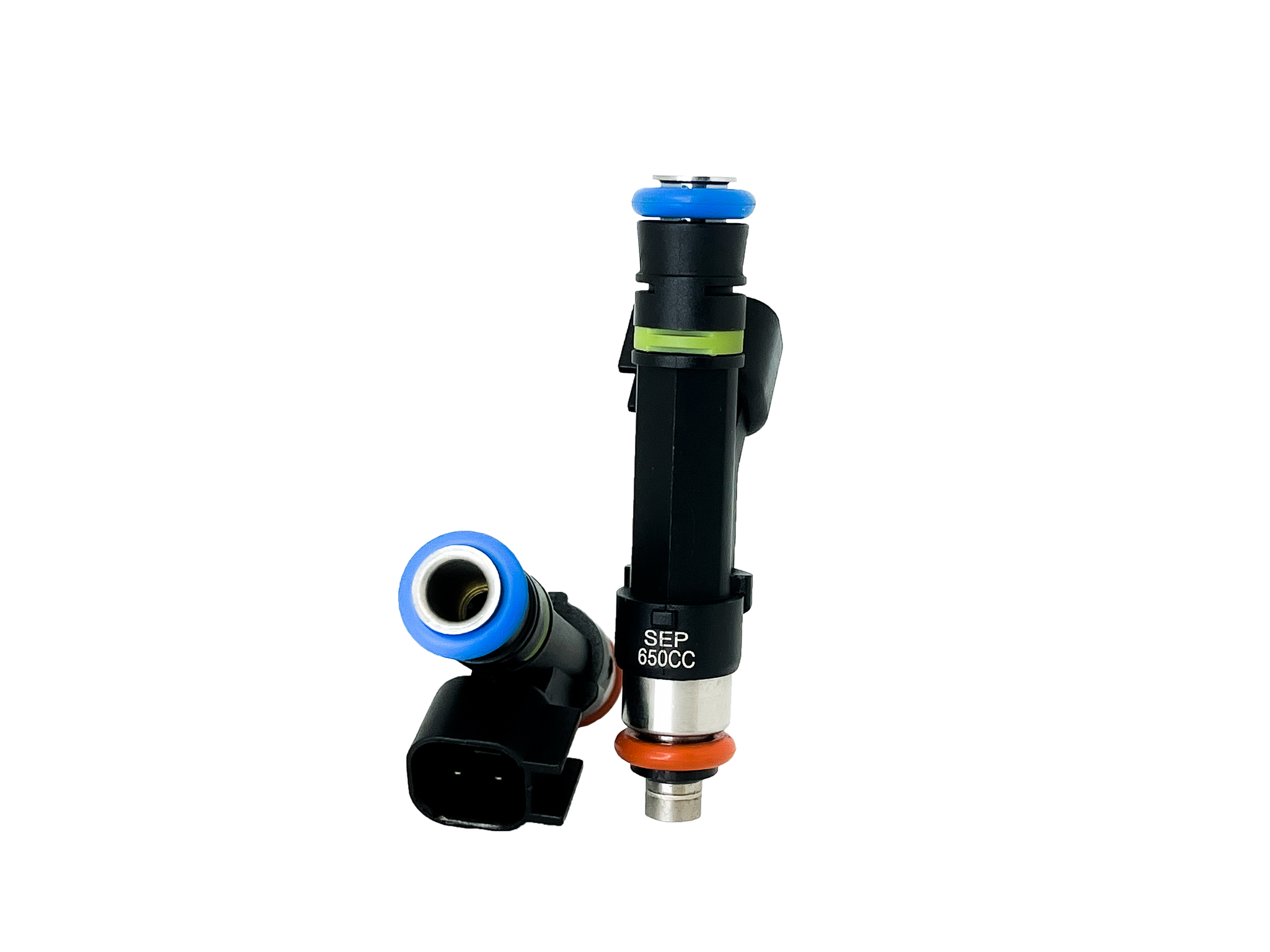

Connector: USCAR (EV6)

Flow Rate @43: 650cc/min, 63.5b/hr

High Impedence, 12.5 ohms coil

 *** It is IMPERATIVE when running high flow fuel injectors you run a 10 Micron inline aftermarket fuel filter system!!! Failing to do so will allow debris COMMONLY found in pump gasses into the injector body and begin to alter fuel flow rates and/or cause TOTAL FAILURE of fuel injectors voiding your warranty and damaging your engine***

Vehicle Compatibility

Direct OEM Fitments FOR 60mm length (please reference your OEM plug style and choose the appropriate option or adapter)

BMW:

• E30 M3 88-91, E36 M3 96-99, M Coupe / M Roadster 98-00, 920i / 740i, 328 96-98

Buick:

• Turbo Regal, Grand National

Chevy:

• LS1/LS6, Camaro 93-96 (LT1), Camaro 98-01 (LS1), C5 Corvette (inc Z06), Cobalt SS (super)

Dodge / Chrysler/MOPAR:

• Viper 03-07, Ram SRT-10 04-06

Ford:

• Focus ZX3, Focus SVT, Focus RS, SVT Lightning, F150 Harley Davidson, Mustang SVO, Mustang GT 88-96, Mustang GT 97-04, Mustang GT 05-10, Mustang Cobra 99-04, Falcon GT and GS 5.0 – 2010+

Holden:

• Commodore VT (V6), Commodore VTII (LS1),  Commodore VX (LS1), Commodore VXII (V6), Commodore VY (LS1), Commodore VS/VY (SCV6), Monaro (LS1)

Hyundai:

• Genesis 2.0t 13-14

Infinity:

• G20 91-96 (14mm), G20 99-02 (14mm)

Nissan:

• 300ZX TT (90-96) 14mm, 240SX-S13/S14/S15 (14mm), SR20DET FWD (14mm)

 Pontiac:

• Firebird (93-97) LT1, Firebird (98-02) LS1, Trans-Am (93-97) LT1, Trans-Am (98-02) LS1, Turbo T/A (89 Anniv.), GTO (2004) LS1

Porsche:

• 996/997.1, 993/911 84-98 (no turbo)

Saturn:

• Ion Redline, Sky (Non turbo)


Toyota:

• MR-2 Turbo (90-96) 3S-GTE (14mm), Supra Turbo (93-98) 2JZ-GTE (14mm), Celica All-Trac (89-99) 3S-GTE (14mm)

Aftermarket and common modification fitments:

• 2.5"-2.75" injector height Manifolds (Truck, TBSS, Flex Fuel) fit with appropriate fuel rail or 1/4"-1/2" spacer and extended hardware. How to: Fuel Rail Spacer
• Holley Sheet Metal Intake PART# 820032-1
• LS1/6 intakes

Legal Disclaimer

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

The following vehicles are considered Racing Use Only Vehicles:

• Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle
