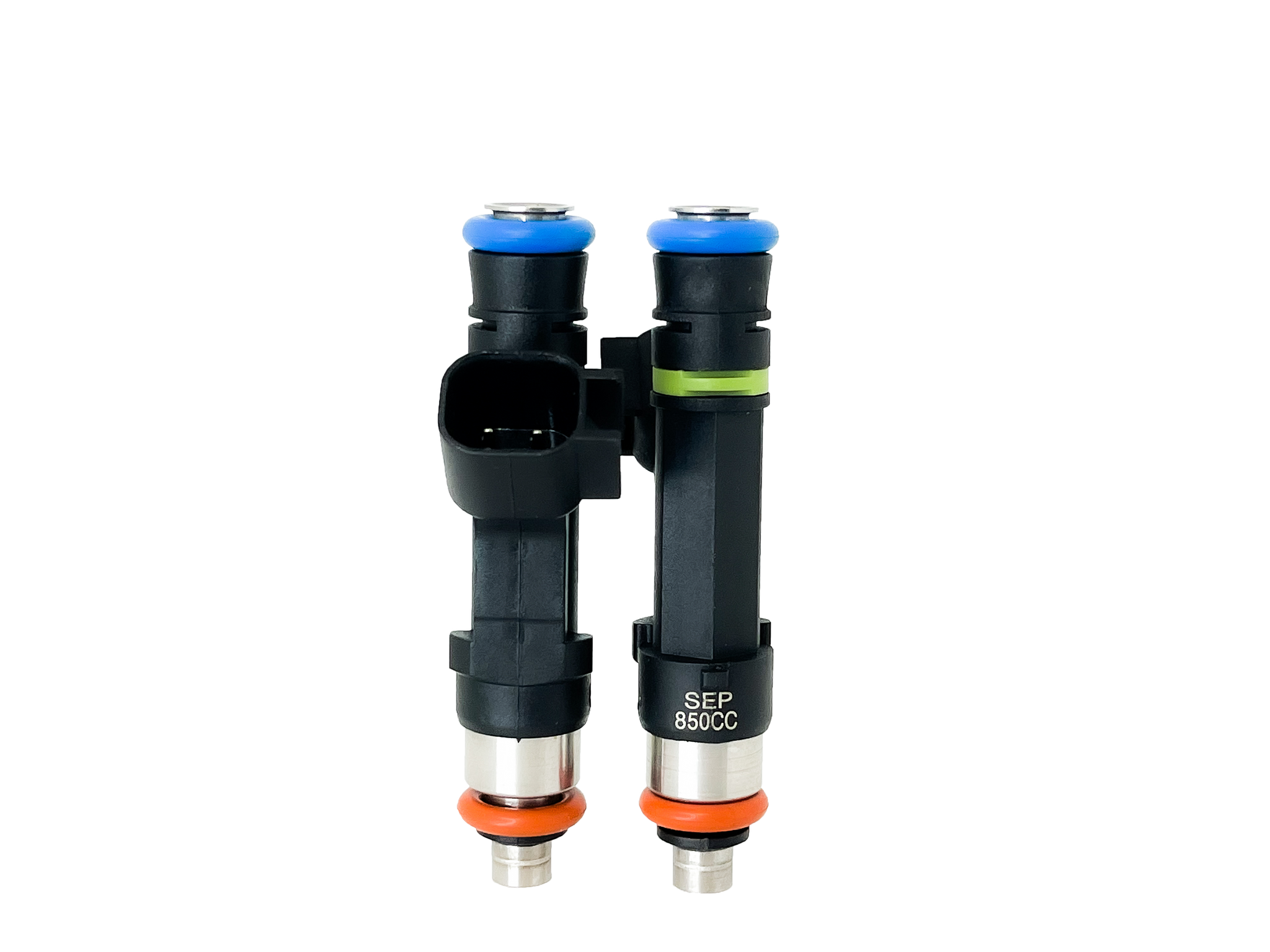

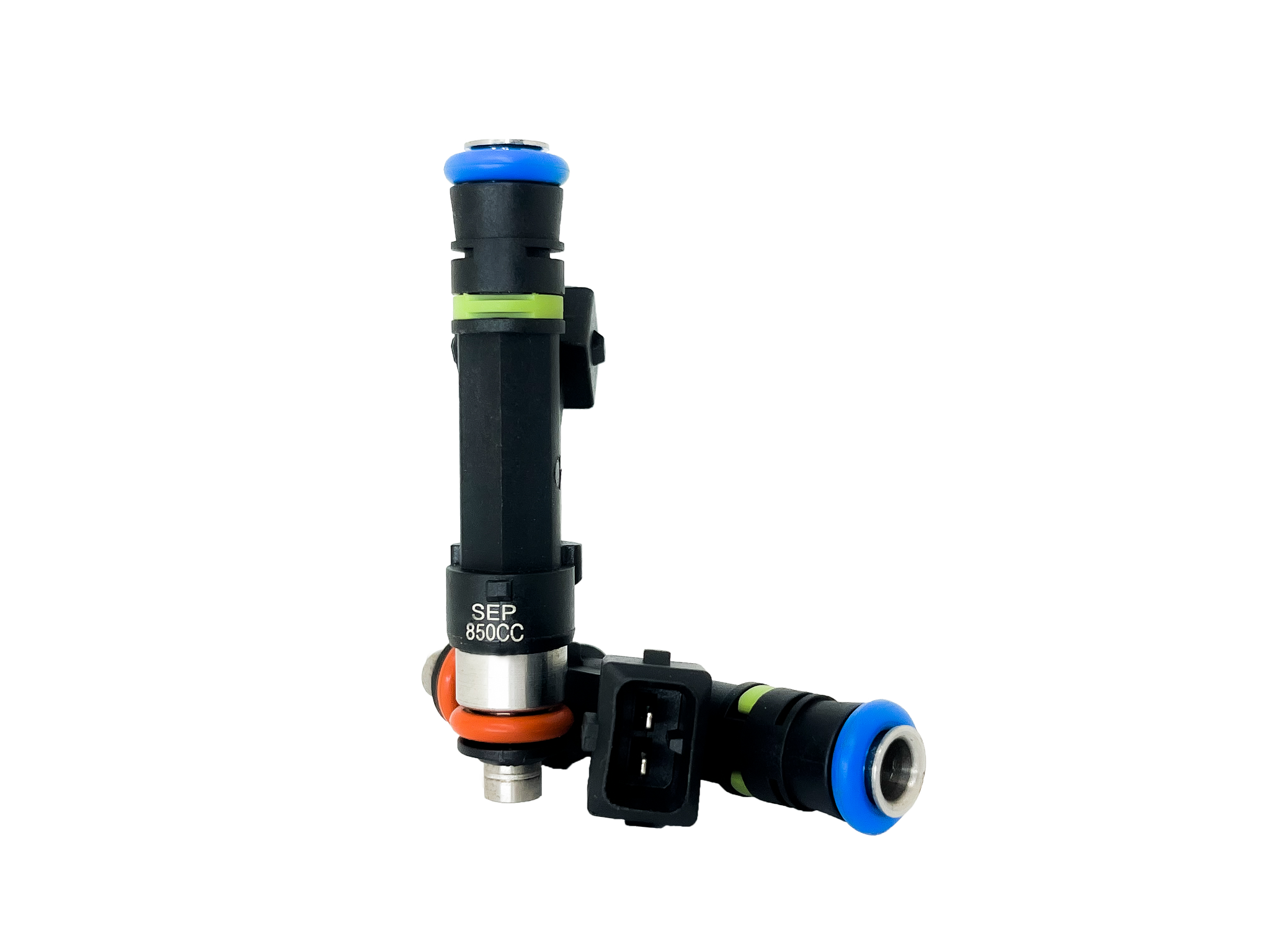

LS1 Body Length (60mm from the center of the orings) with a 14mm bottom and top oring diameter. EV1 (Jetronic) Harness Plug.
Sets of 4-6-8 will be matched to less than 2% variance on a dynamic test when ordered. Flow report included in package and stored in our database for future reference.
Full Injector Flow/Offset report included in package and Plug and Play ECU tuning data for all SEP Injectors included with purchase via email request. (Plug and Play ECU data/Injector characteristics provided by Calibrated Success Inc./Greg Banish)
Standard Gasolines and Ethanol Flex fuel
Crank Horsepower Rating @58psi fuel pressure, 93 octane, V8 engine with 1 injector per cylinder: 1000hp
Connector: USCAR (EV6)
Flow Rate @43: 850cc/min, 80b/hr
High Impedence, 12.5 ohms coil
Direct OEM Fitments FOR 60mm length (please reference your OEM plug style and choose the appropriate option or adapter)
Aftermarket and common modification fitments:
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
The following vehicles are considered Racing Use Only Vehicles:
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
