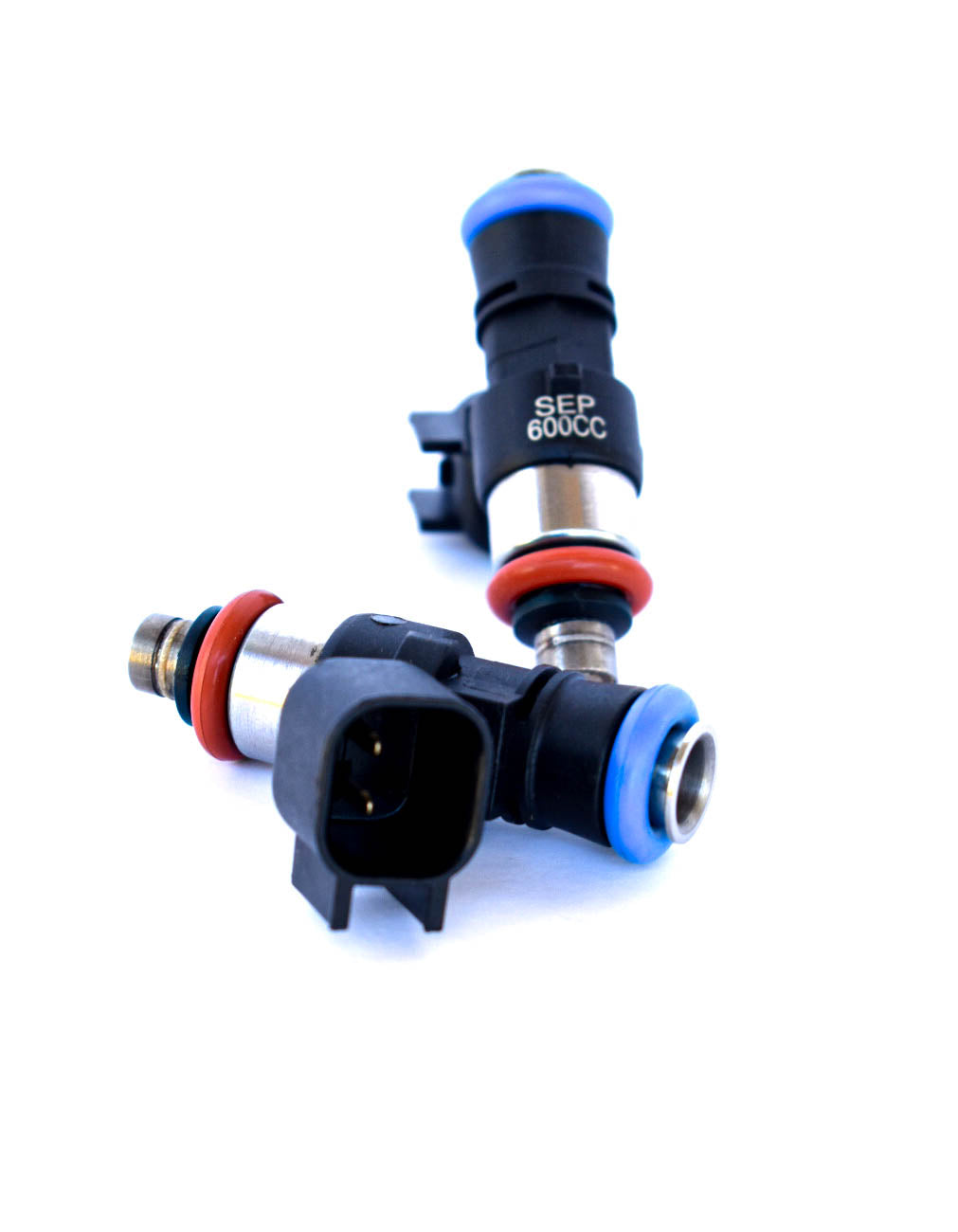

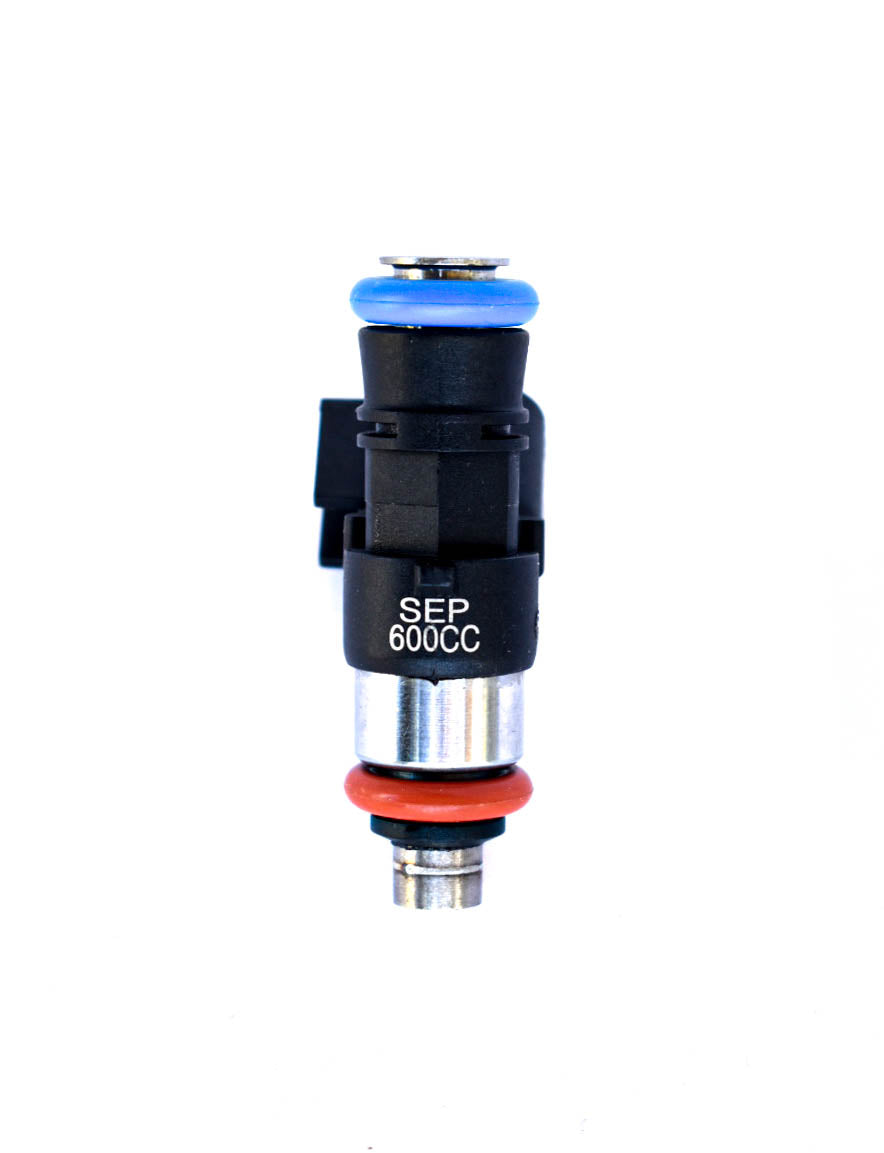

SEP - "Shorty/Pico" LS3/LSA Style - EV6 (USCAR) plug - 600cc/min, 60lb/hr@43PSI Injectors
- Description
- Testimonials
- Flow/Offset Report
- Fuel Compatibility
- Vehicle Compatibly
- Legal Disclaimer
Based on universal fitment injectors such as the EV14 compact and Marelli Pico the SEP LS3/LSA style injector is extremely versatile and will fit many applications! With the 15mm lower o-ring it will fit LSA Blower applications and LS3 OEM intakes.
"Well I have to say first off your customer service is AMAZING 👏, AND almost as good as your products..... I have a 79 k5 with a mild 6.0ls 450lph comp cams ls1 269lr cam and a 4l60e with 2600 stall converter . Purchased a set of your SEP 600cc, I'm new to the whole tuning thing but between your staff and the terminator x max my blazer RIPPS! Thank you for your help and your bad @$$ products.... forever customer" - James
Sets of 4-6-8 will be matched to less than 2% variance on a dynamic test when ordered. Flow report included in package and stored in our database for future reference.
Full Injector Flow/Offset report included in package. Plug and Play ECU tuning data for all SEP Injectors included with purchase via email request. (Plug and Play ECU data/Injector characteristics provided by Calibrated Success Inc./Greg Banish)
Standard Gasoline and Ethanol Flex fuel
Crank Horsepower Rating @58psi fuel pressure, 93 octane, V8 engine with 1 injector per cylinder: 800hp
Connector: Jetronic (EV1)
Flow Rate @43: 600cc/min, 60b/hr
High Impedence, 12.5 ohms coil
*** It is IMPERATIVE when running high flow fuel injectors you run a 10 Micron inline aftermarket fuel filter system!!! Failing to do so will allow debris COMMONLY found in pump gasses into the injector body and begin to alter fuel flow rates and/or cause TOTAL FAILURE of fuel injectors voiding your warranty and damaging your engine***
Audi:
- Audi EA888 Gen 3, R8 2015+, Audi RS3/TTRS
- Raptor 2017+
- Genesis V6 09-12
Volkswagen:
- VW EA888 Gen 3
The following fitments will require lower o-ring PN: Acd 217-1624/Gm 89017587
Cadillac:
- CTS-V 09-14 (LSA)
Chevrolet:
- Camaro ZL1 (LSA), Camaro 10-15 (LS3), C6 Corvette, C6 Z06 (LS7), C6 ZR1 (LS9)
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
