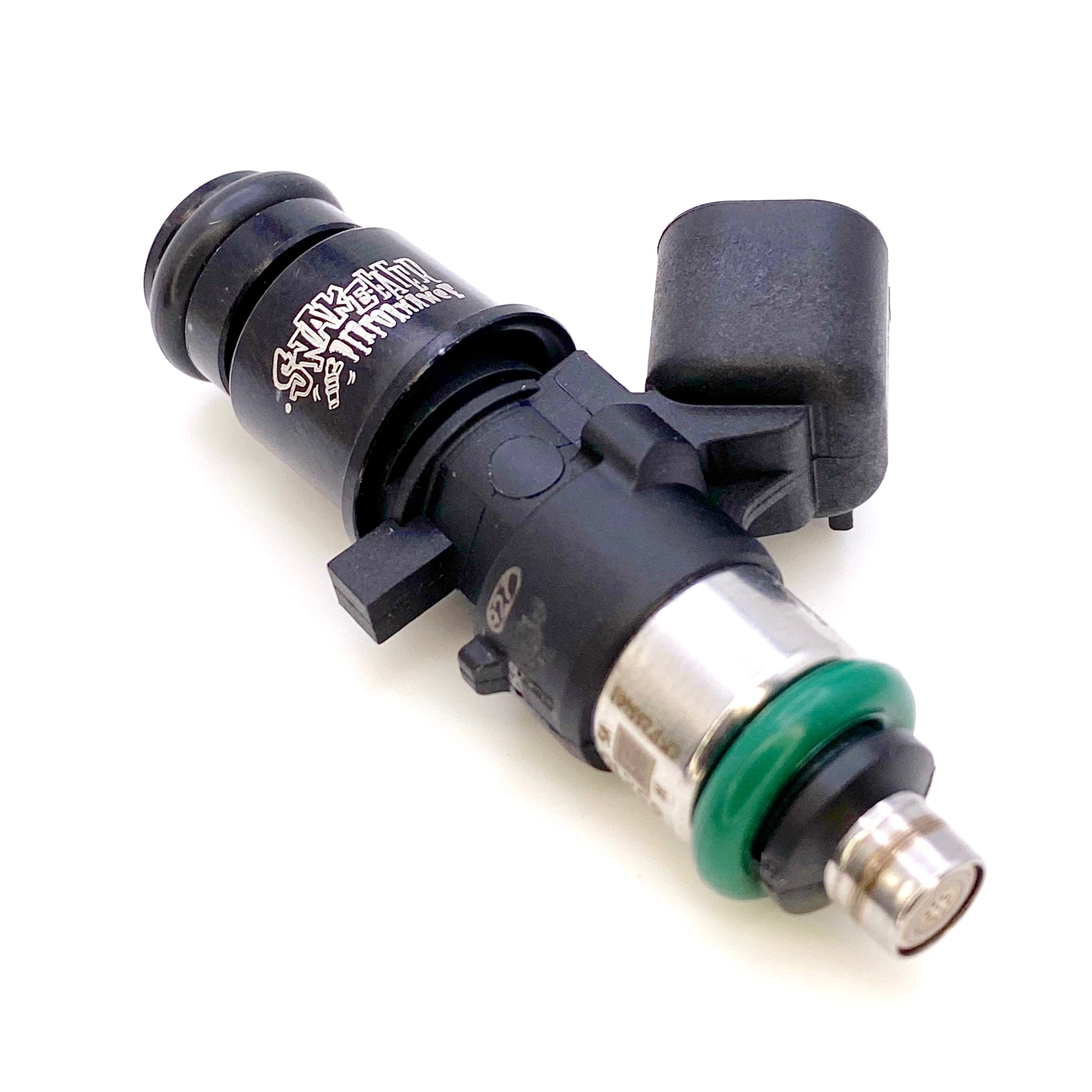

Pro-Series - 735cc - "Medium" LS2 Style - 48:14:14 - EV6 (USCAR) plug
- Description
- Testimonials
- Flow Balancing
- Fuel Compatibility
- Vehicle Compatibility 1
- Vehicle Compatibility 2
- Legal Disclaimer
Made in the USA in collaboration with Bosch, The Snake Eater Pro-Series line uses only the highest quality internal components, materials and is ran through an incredible amount of injections before arriving at your door.
The SEP Pro-Series line is our top of the line, no expense spared, closest flow and offset matched injector line. These injectors are intended for the customer who is scratch building a motor, intends to run high rpm for long duration or simply wants to trust their fuel system to the best name brand in fuel injection.
SEP GB Customer PTS Fab running SEP GB Injectors on Methanol
Injectors will be within 1% flow variance on a multi point dynamic test.
Full Injector Flow/Offset report included in package and Plug and Play ECU tuning data for all SEP Injectors included with purchase via email request. (Plug and Play ECU data/Injector characteristics provided by Calibrated Success Inc./Greg Banish)
Gasolines and Ethanol Flex fuel (Methanol is compatible but will void warranty use at your own risk)
Crank Horsepower Rating @58psi fuel pressure, 93 octane, V8 engine with 1 injector per cylinder: 950hp
Connector: USCAR (EV6)
Flow Rate @43psi: 735cc/min, 70lb/hr @58psi 850cc/min, 80lb/hr
High Impedance, 9.5 ohms coil
*** It is IMPERATIVE when running high flow fuel injectors you run a 10 Micron inline aftermarket fuel filter system!!! Failing to do so will allow debris COMMONLY found in pump gasses into the injector body and begin to alter fuel flow rates and/or cause TOTAL FAILURE of fuel injectors voiding your warranty and damaging your engine***
Direct OEM Fitments FOR 48mm aka "EV14 Medium" (please reference your OEM plug style and choose the appropriate option or adapter)
- E46 M3 01-06, E90 / E92 / E93 M3 07+
- Outlander ATV 08
- Neon SRT-4, Caliber SRT-4, Hellcat/Trackhawk/Demon
- Focus RS MK II-IV: Mustang GT500 07-14
- Civic 02-05 Si, Civic 06-11, S2000 06-09, RSX 02-09, TSX 04-10
- G35
- Gallardo 04-13
- 350Z, Patrol, Sentra SE-R Spec V 00-06, Titan 04+
- 996/997.1 TT
Direct OEM Fitments with added lower oring pn: Acd 217-1624/Gm 89017587
Chevrolet:
- Chevrolet Trailblazer SS 06-09 , C6 Corvette 05-07 LS2, Pontiac GTO 05-06 LS2
Cadillac:
- Cadillac CTS-V 06-07 LS2
Chevy LS family:
- LS2
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
