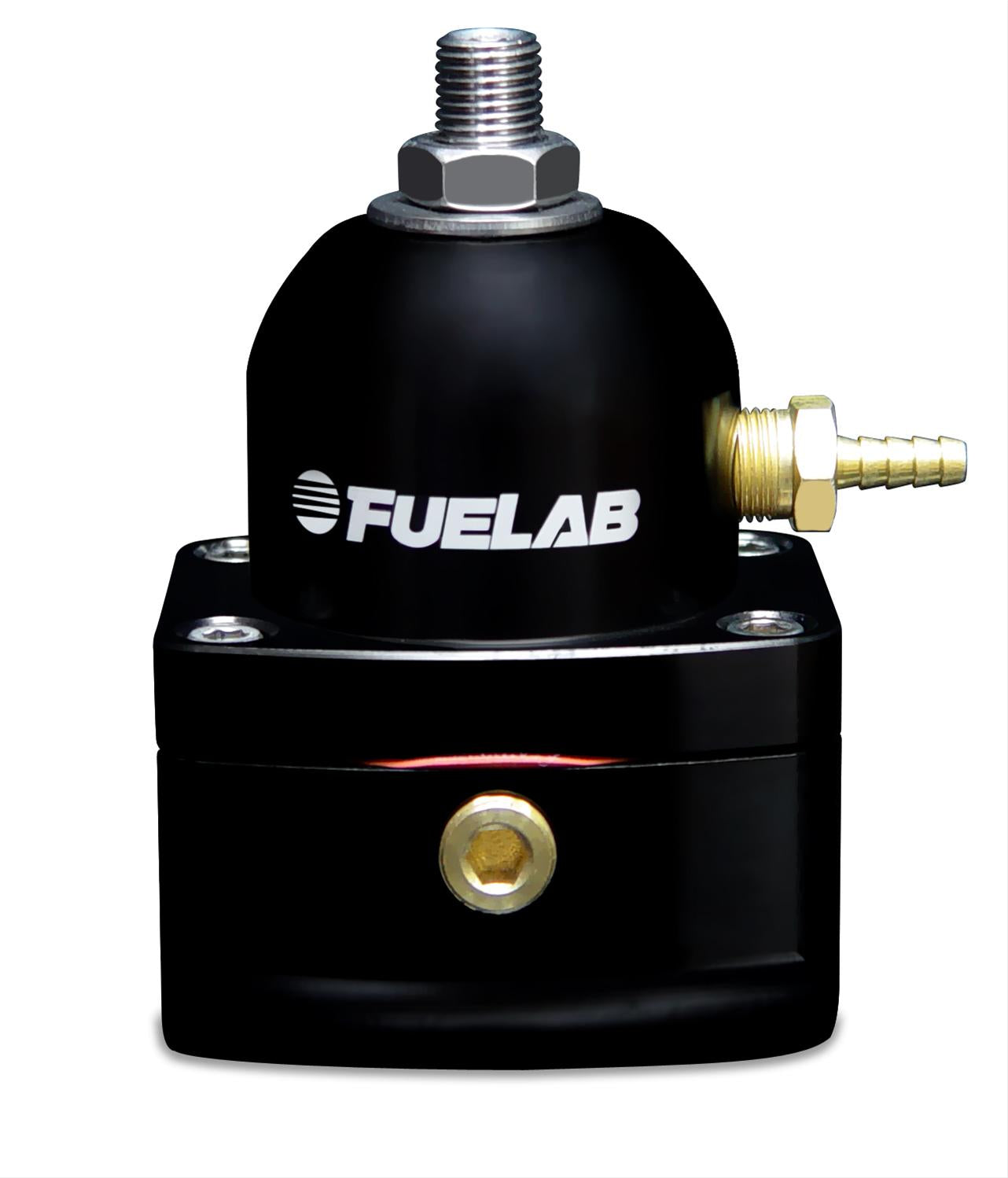

FUELAB 515 Series fuel pressure regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 psi--to fuel injected applications up to 125 psi. The regulators are compatible with gasoline, diesel, methanol, and ethanol. They, also, feature billet aluminum construction, in your choice of anodized finishes for maximum protection. The FUELAB 515 Series fuel pressure regulators use a fine thread pitch for precise pressure adjustment. Units include a 1/8 in. NPT port and plug for an external pressure gauge; and a versatile mounting bracket with stainless steel hardware is provided.

Details

Pressure Range (psi): 25-90

Regulator Style: Return

Regulator Location: Inline

Boost/Vacuum Reference Port: Yes

Gauge Port: Yes

Inlet Quantity: One

Regulator Inlet Size: -10 AN

Inlet Attachment: Female straight cut O-ring

Outlet Quantity: One

Regulator Outlet Size: -10 AN

Outlet Attachment: Female straight cut O-ring

Return Fitting Size: -6 AN

Return Attachment: Female straight cut O-ring

Fittings Included: No

Regulator Material: Billet aluminum

Regulator Finish: Black anodized

Rebuildable: Yes

Mounting Bracket Included: Yes

Quantity: Sold individually.
