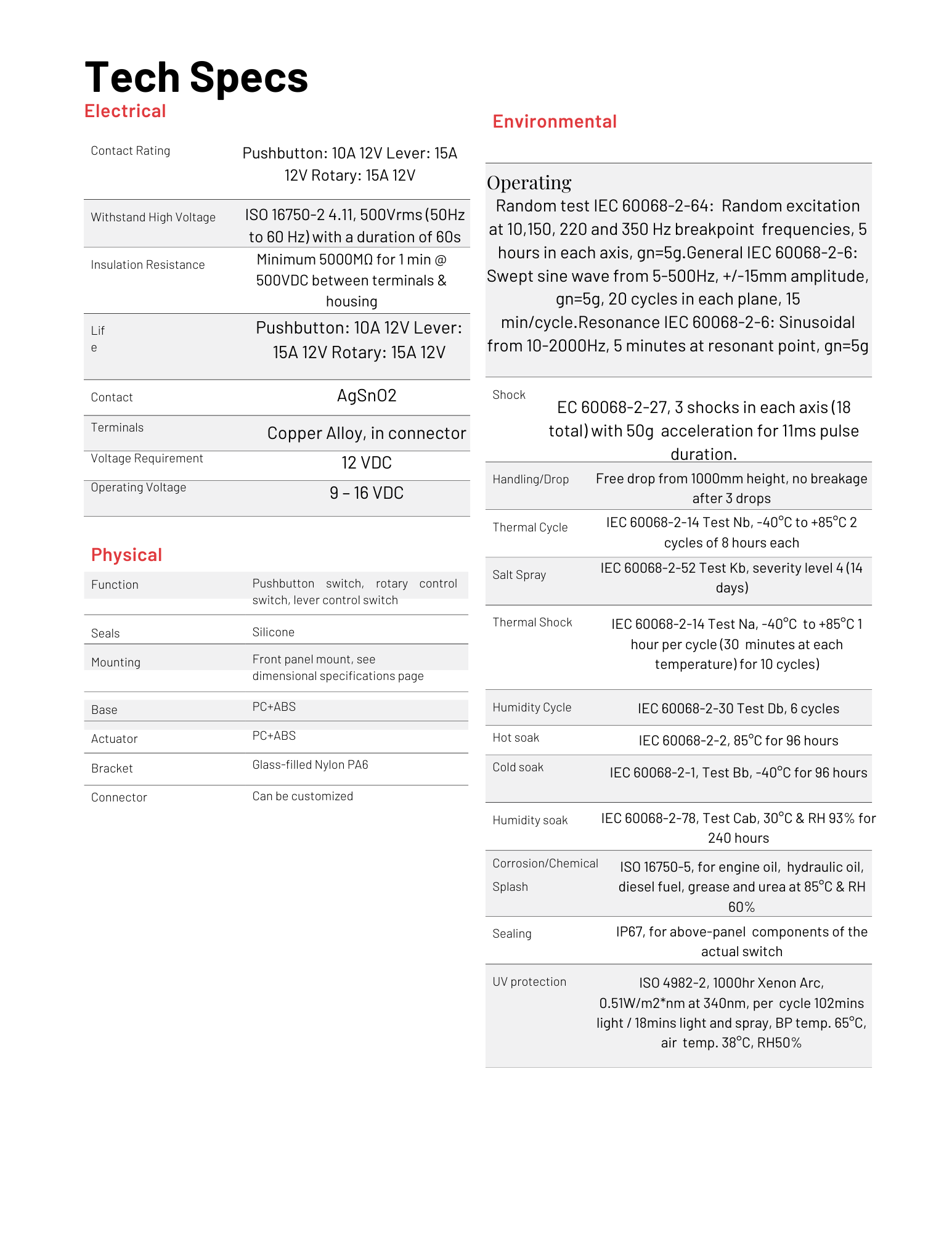

- Technical Specs
The line between Race Car and Street Car no longer exsits! Your race car needs to have blinkers, hazards and full running lights!
Now it is easier than ever to have it all contained in one easy to mount, compact, and aesthetic package!
Dash mount, center console mount, or steering column mount with one of out Billet column mounts or whatever you can think of!
Use for switched grounds or any 12V <15A source

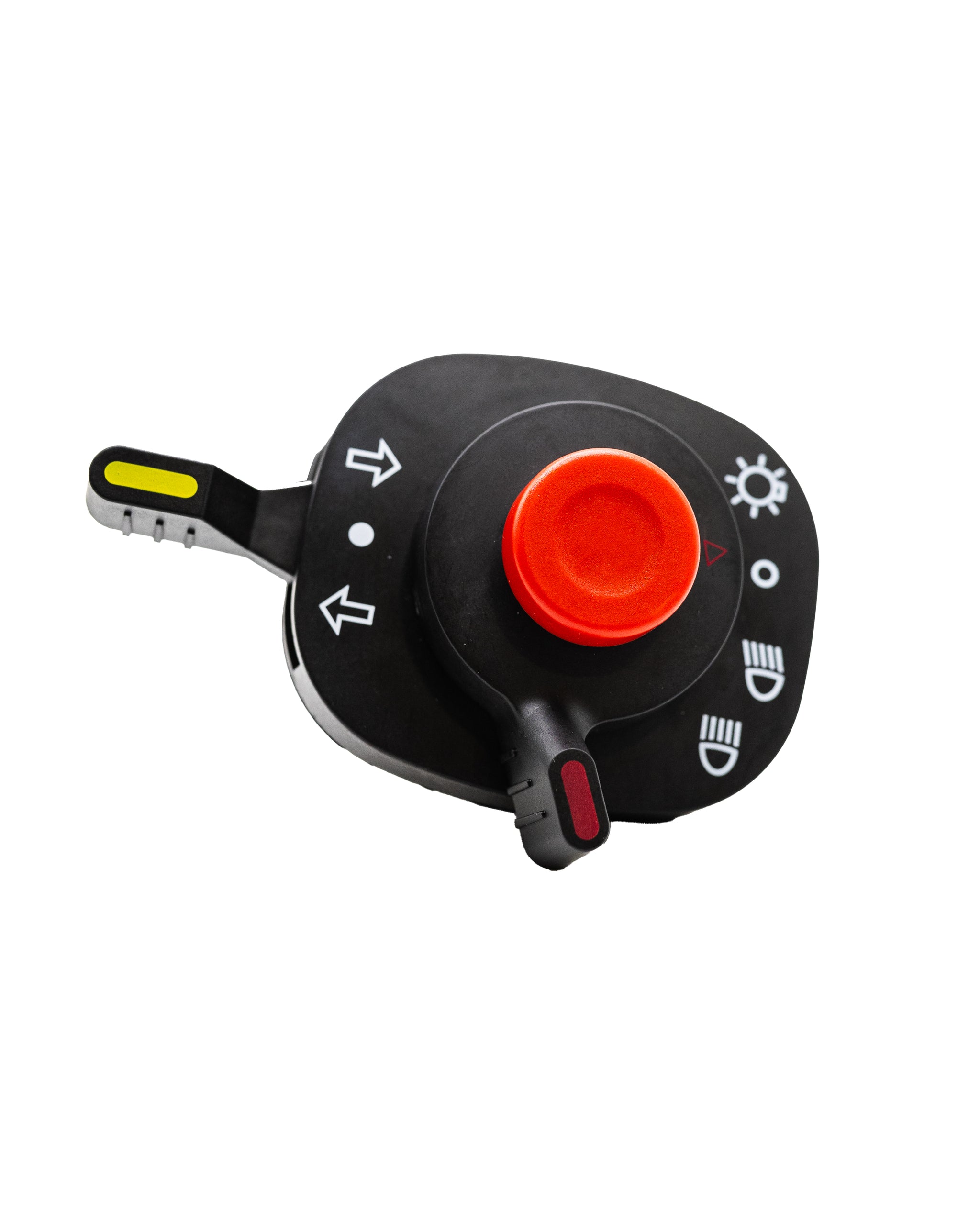

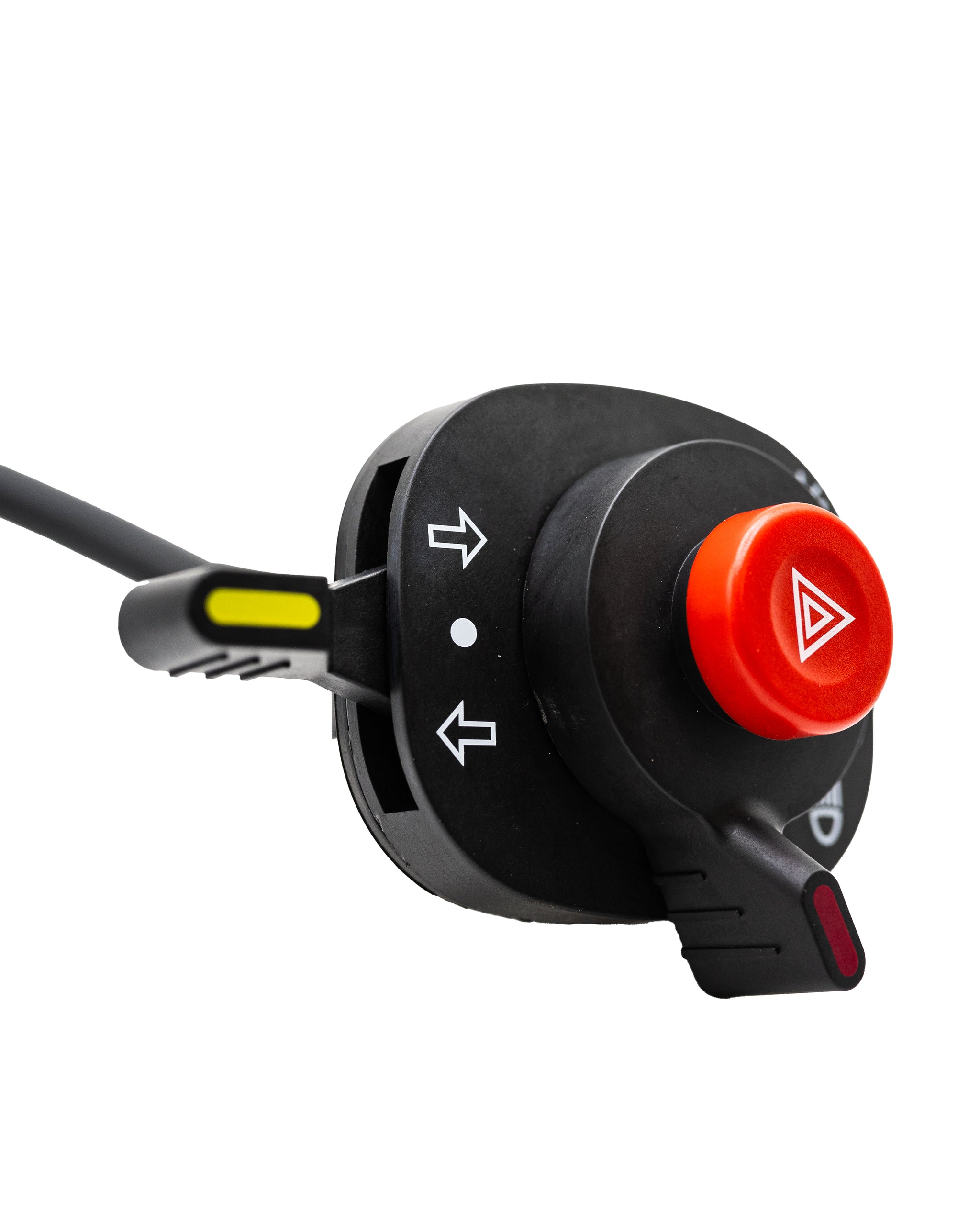

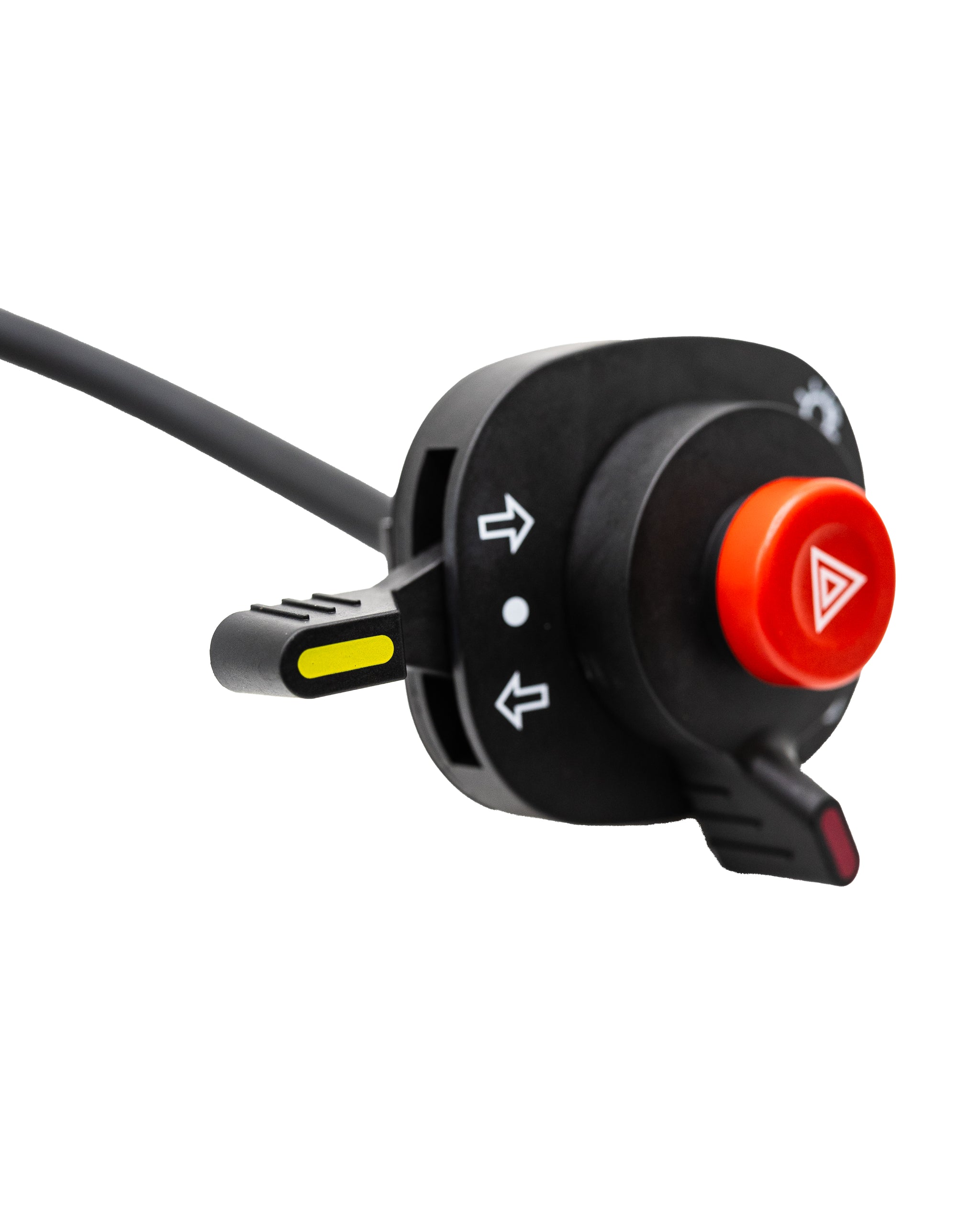

This is the most versatile combination made! This switch features a multi-position rotary, a three-position lever, and momentary pushbutton functions. This compact switch offers superior current ratings, IP67 sealing protection, easy-to-see legends and it is compatible with a variety of popular connectors.
The variants are based on different functions performed by the centrally mounted red button
Momentary (hold to perform function): Horns, Nitrous Purge, Bump, 2-step etc.
Alternate (Press once for on, Press again for off): Hazard lights, Auxiliary lights, Ground Effect Lighting, Secondary Pumps/Systems, etc.
Number of Poles |
1 Pole |
Ratings |
Pushbutton: 10A 12VDC |
Circuits |
Pushbutton: (On)-Off |
Insulation Resistance |
Minimum 5000MΩ for 1 min @ 500VDC between terminals & housing |
Base Material |
PC+ABS |
Actuator Style |
Combination Pushbutton, Rotary, & Lever |
Actuator Material |
PC+ABS |
Bracket Material |
Glass-filled Nylon PA6 |
Mounting Method |
Front panel mount |

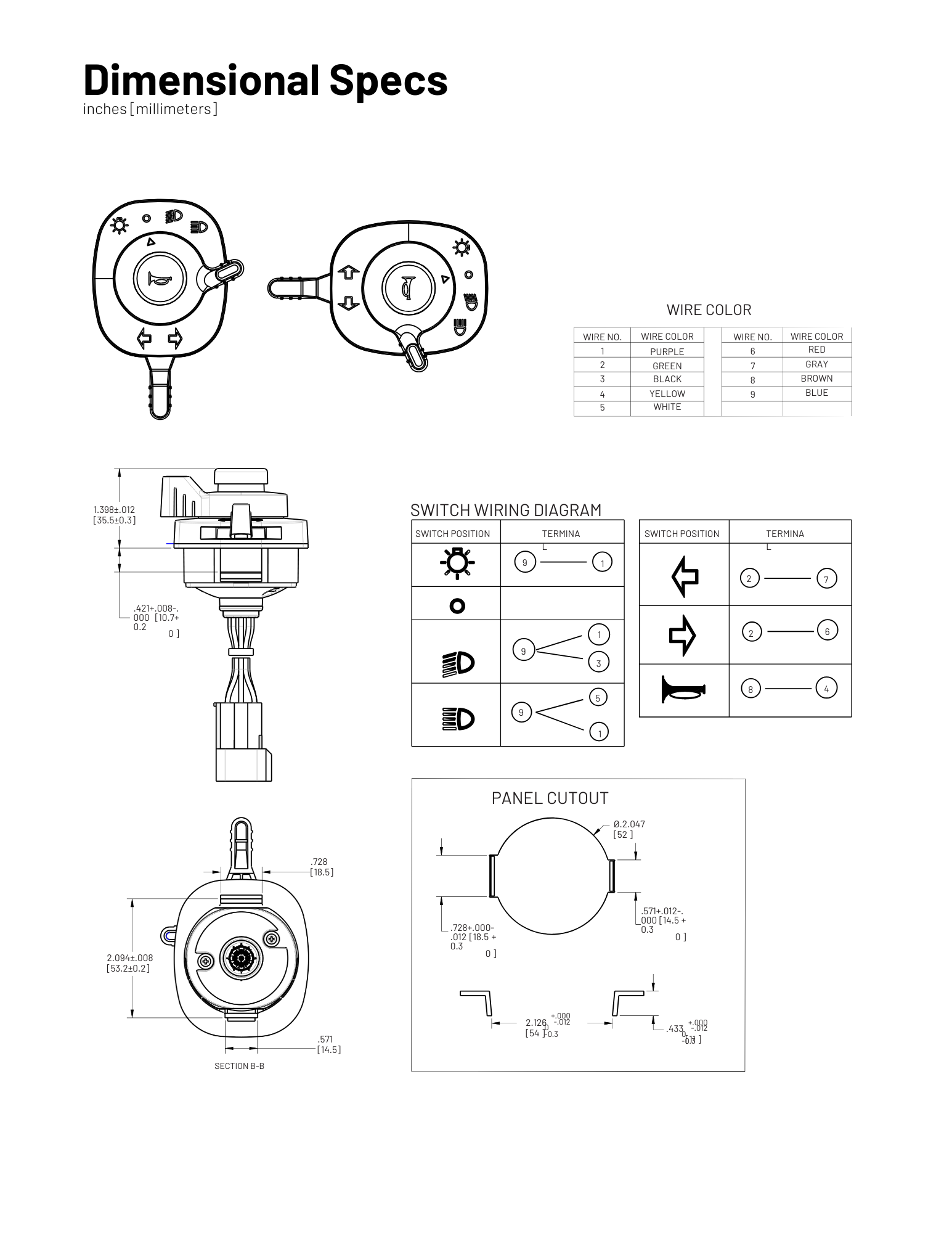

Mounting Hole Dimensions |
2.047 inches [52mm] Diameter |
