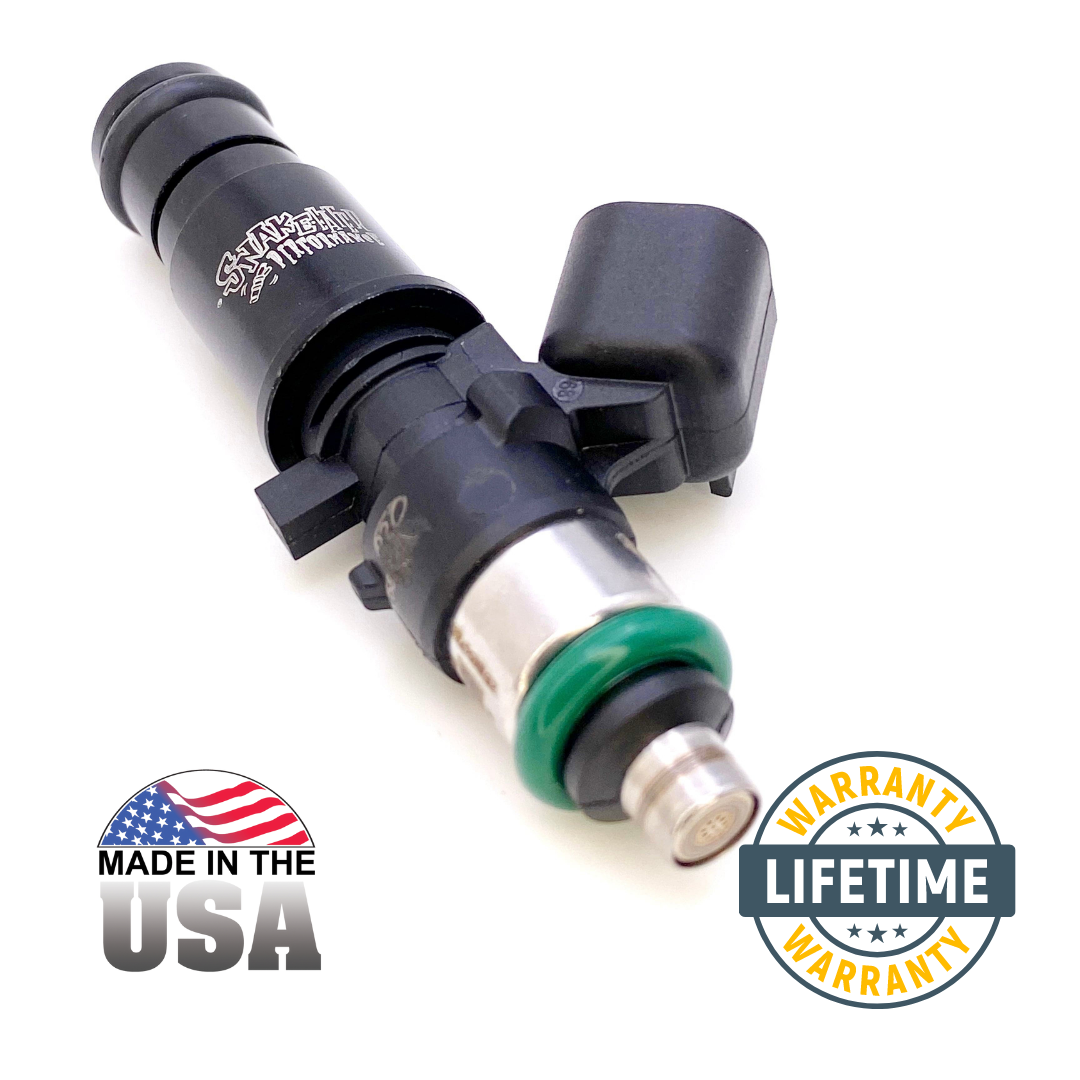

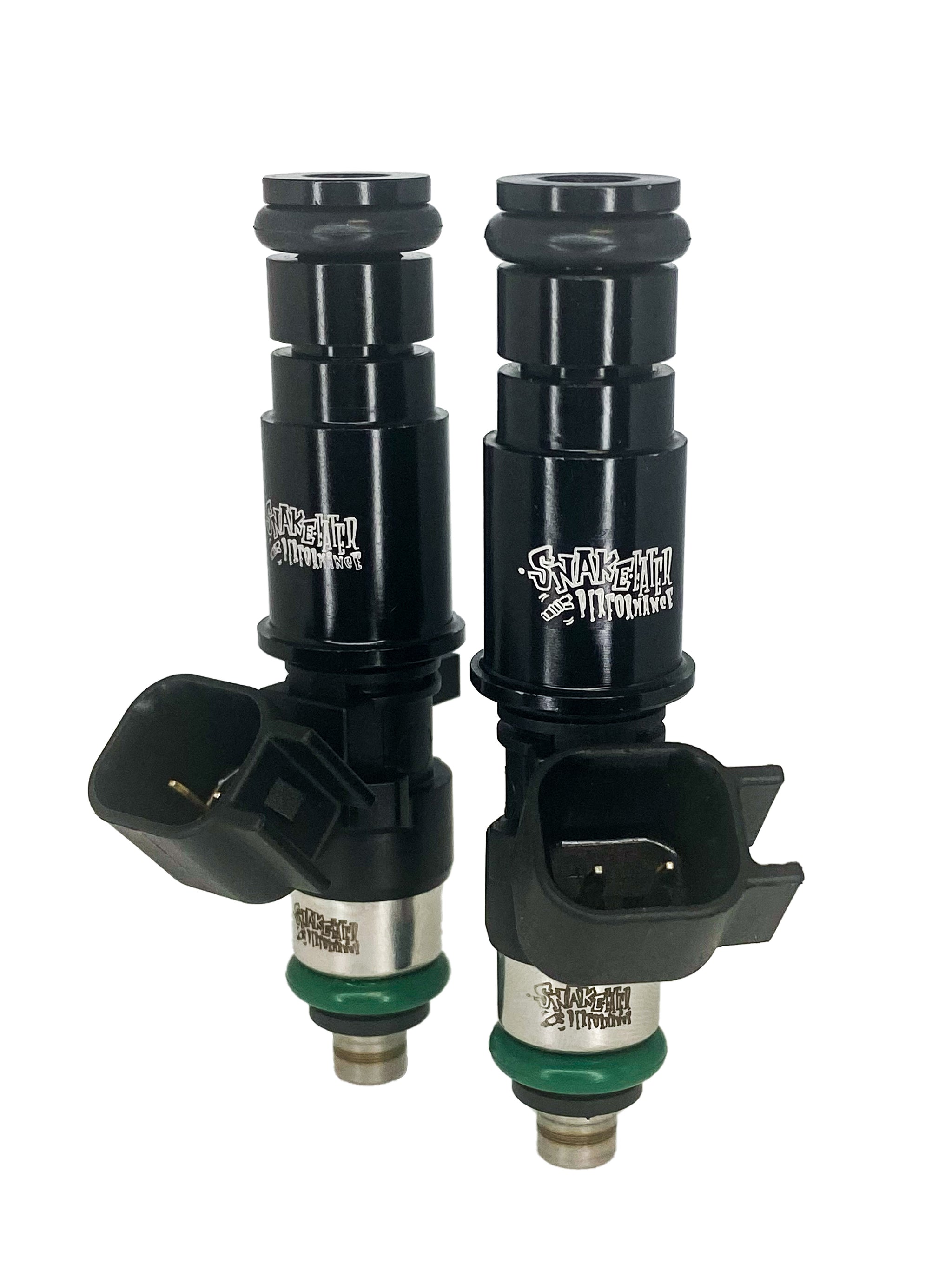

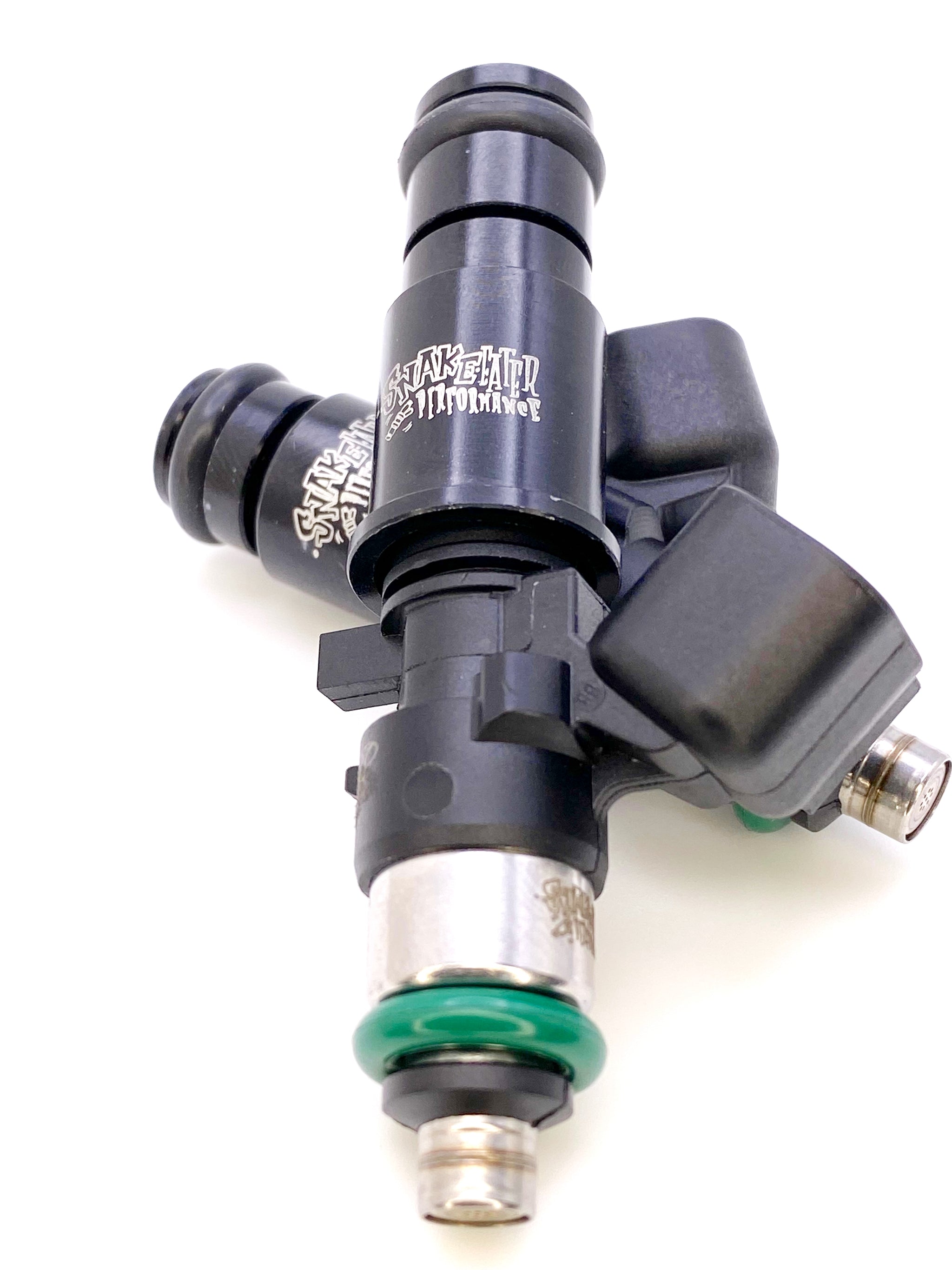

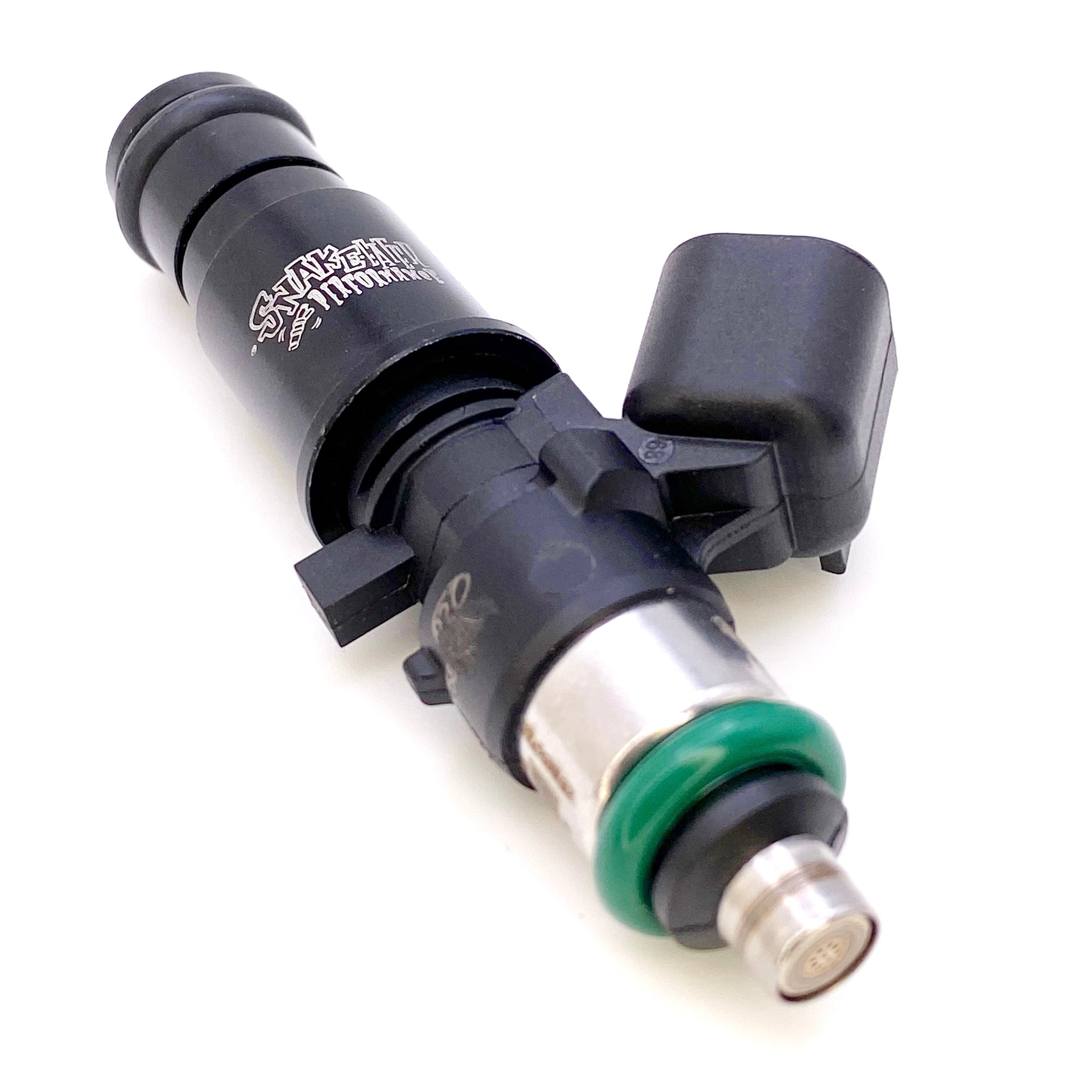

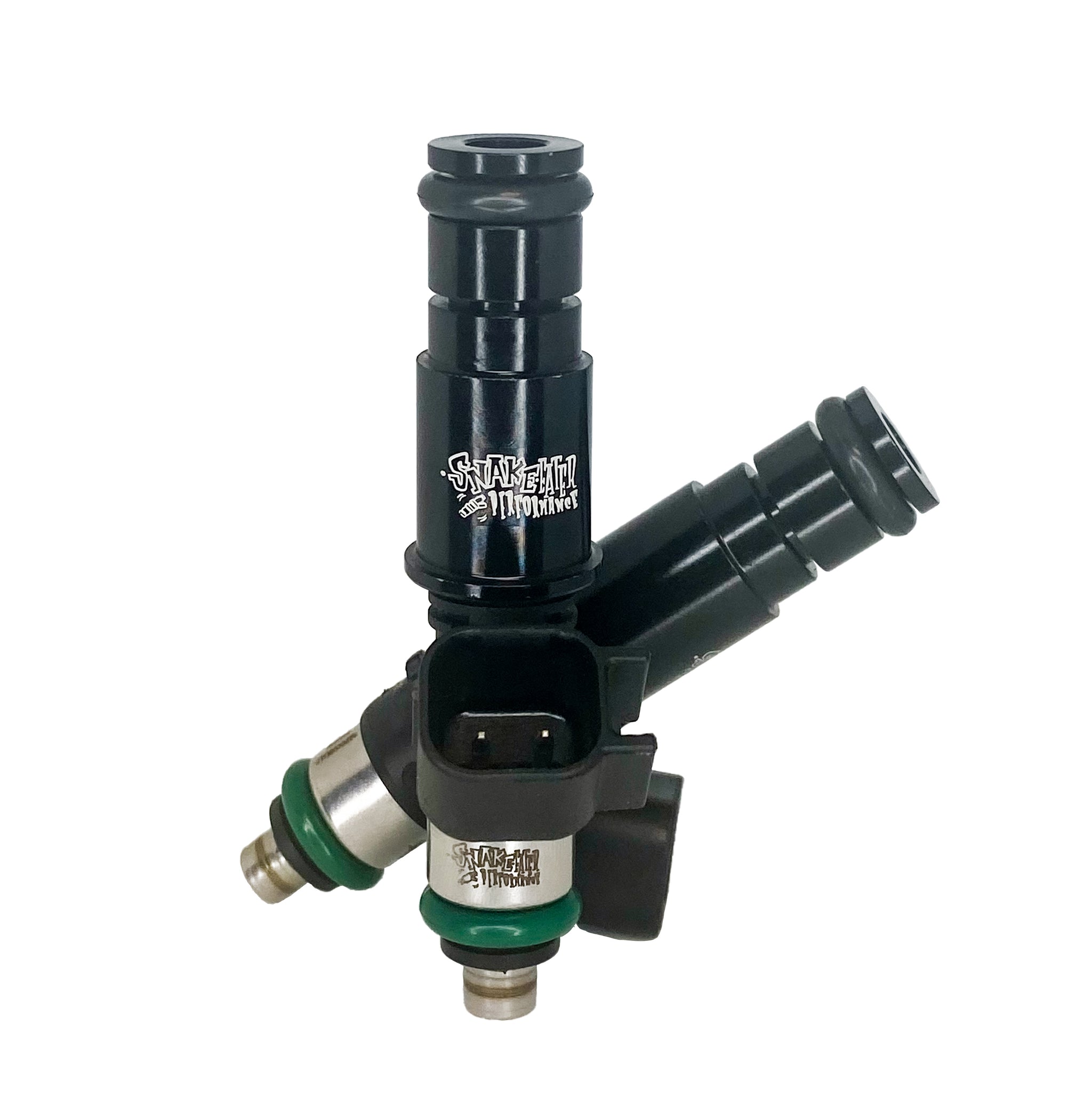

Pro-Series - 735cc - "Long" LS1/LS6 Style - 60:14:14 - EV6 (USCAR) plug
- Description
- Fuel Compatibility
- Vehicle Compatibility
- Legal Disclaimers
Made in the USA in collaboration with Bosch, The Snake Eater Pro-Series line uses only the highest quality internal components, materials and is ran through an incredible amount of injections before arriving at your door.
The SEP Pro-Series line is our top of the line, no expense spared, closest flow and offset matched injector line. These injectors are intended for the customer who is scratch building a motor, intends to run high rpm for long duration or simply wants to trust their fuel system to the best name brand in fuel injection.
Injectors will be within 1% flow variance on a multi point dynamic test.
Full Injector Flow/Offset report included in package and Plug and Play ECU tuning data for all SEP Injectors included with purchase via email request. (Plug and Play ECU data/Injector characteristics provided by Calibrated Success Inc./Greg Banish)
Gasolines and Ethanol Flex fuel (Methanol is compatible but will void warranty use at your own risk)
Crank Horsepower Rating @58psi fuel pressure, 93 octane, V8 engine with 1 injector per cylinder: 950hp
Connector: USCAR (EV6)
Flow Rate @43psi: 735cc/min, 70lb/hr @58psi 850cc/min, 80lb/hr
High Impedance, 9.5 ohms coil
*** It is IMPERATIVE when running high flow fuel injectors you run a 10 Micron inline aftermarket fuel filter system!!! Failing to do so will allow debris COMMONLY found in pump gasses into the injector body and begin to alter fuel flow rates and/or cause TOTAL FAILURE of fuel injectors voiding your warranty and damaging your engine***
Direct OEM Fitments FOR 60mm aka "LS1/Deka Style" (please reference your OEM plug style and choose the appropriate option or adapter)
BMW:
- E30 M3 88-91, E36 M3 96-99, M Coupe / M Roadster 98-00, 920i / 740i, 328 96-98
- Turbo Regal, Grand National
- LS1/LS6, Camaro 93-96 (LT1), Camaro 98-01 (LS1), C5 Corvette (inc Z06), Cobalt SS (super)
- Viper 03-07, Ram SRT-10 04-06
- Focus ZX3, Focus SVT, Focus RS, SVT Lightning, F150 Harley Davidson, Mustang SVO, Mustang GT 88-96, Mustang GT 97-04, Mustang GT 05-10, Mustang Cobra 99-04, Falcon GT and GS 5.0 – 2010+
- Commodore VT (V6), Commodore VTII (LS1), Commodore VX (LS1), Commodore VXII (V6), Commodore VY (LS1), Commodore VS/VY (SCV6), Monaro (LS1)
- Genesis 2.0t 13-14
- G20 91-96 (14mm), G20 99-02 (14mm)
- 300ZX TT (90-96) 14mm, 240SX-S13/S14/S15 (14mm), SR20DET FWD (14mm)
- Firebird (93-97) LT1, Firebird (98-02) LS1, Trans-Am (93-97) LT1, Trans-Am (98-02) LS1, Turbo T/A (89 Anniv.), GTO (2004) LS1
- 996/997.1, 993/911 84-98 (no turbo)
- Ion Redline, Sky (Non turbo)
- MR-2 Turbo (90-96) 3S-GTE (14mm), Supra Turbo (93-98) 2JZ-GTE (14mm), Celica All-Trac (89-99) 3S-GTE (14mm)
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
