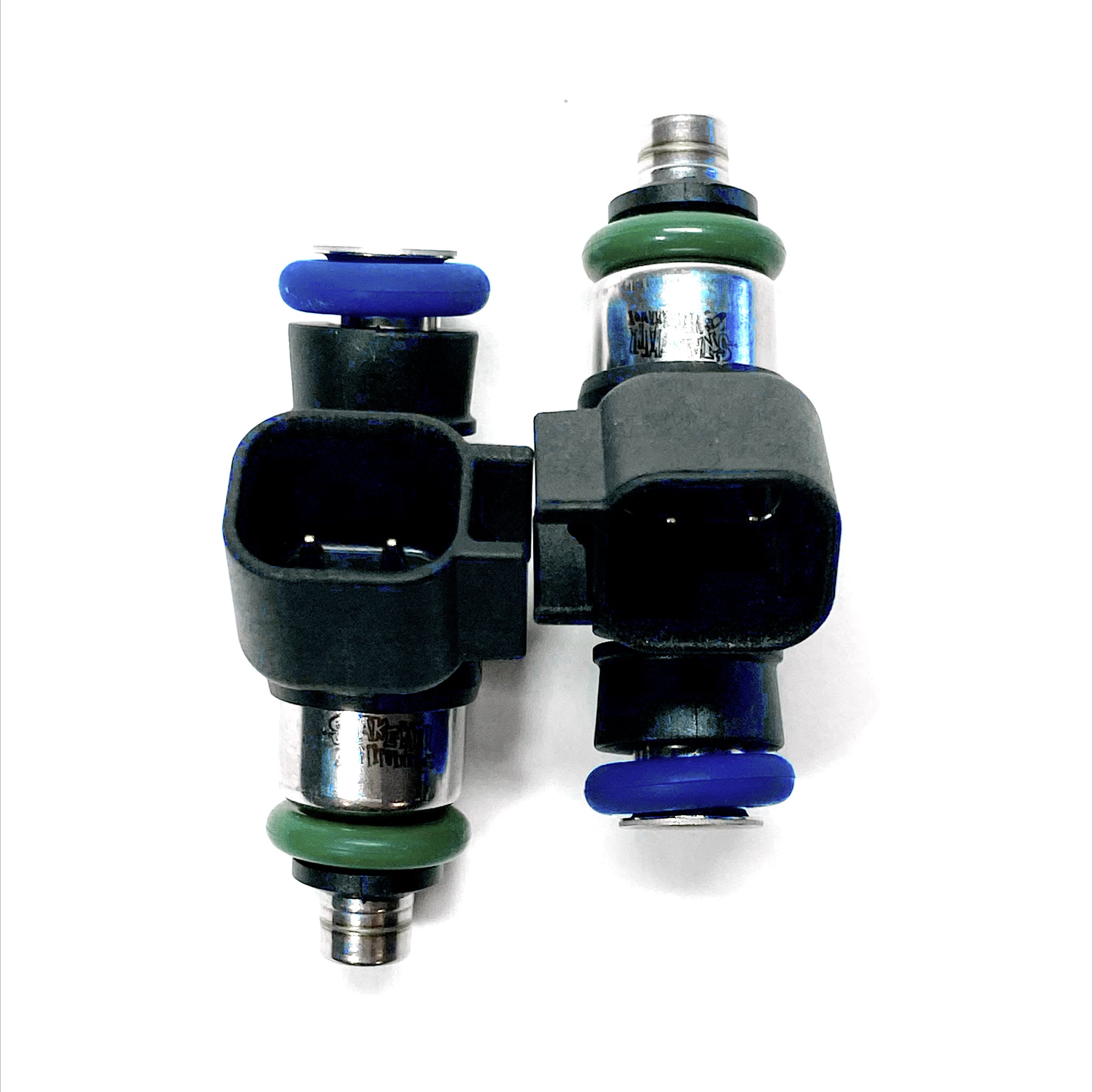

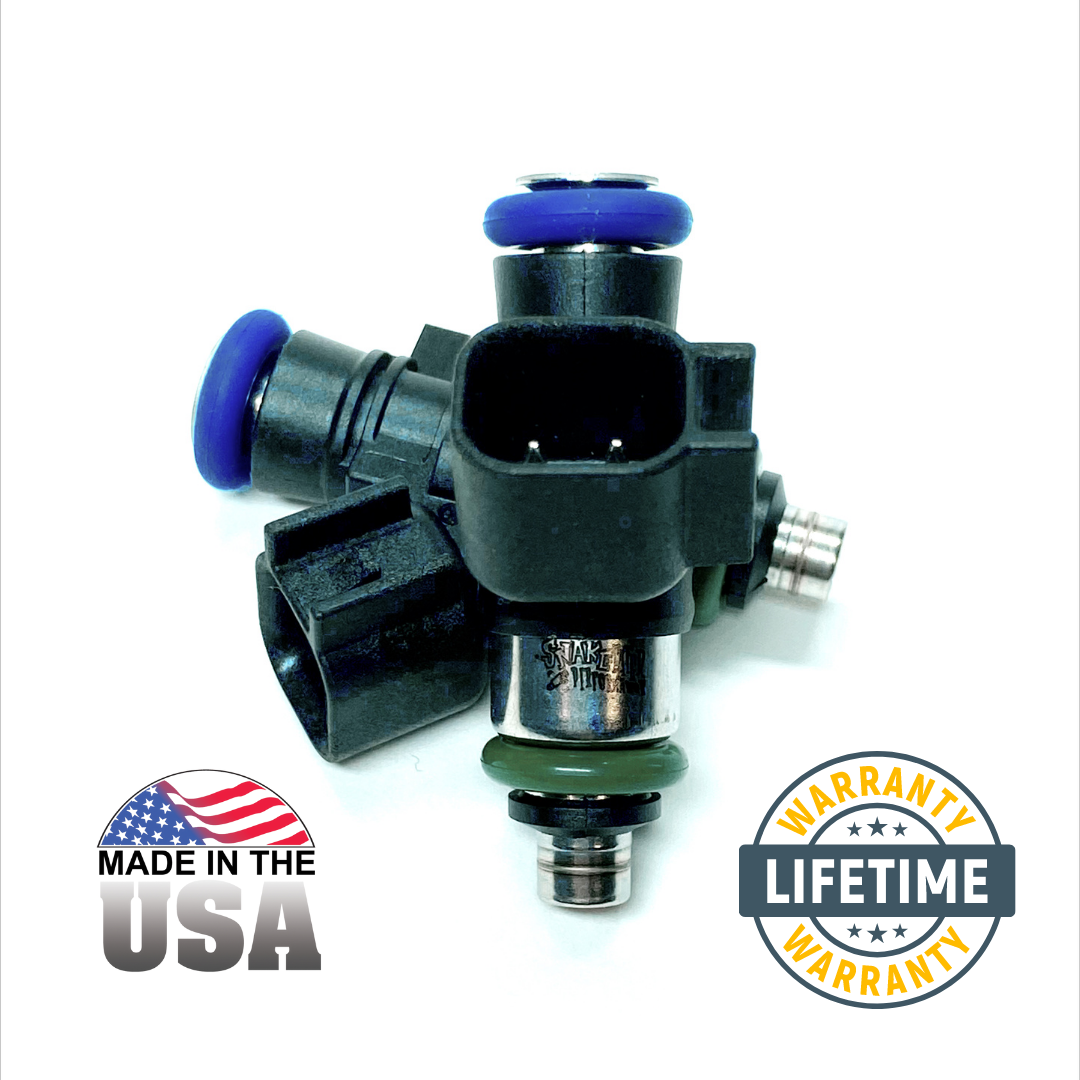

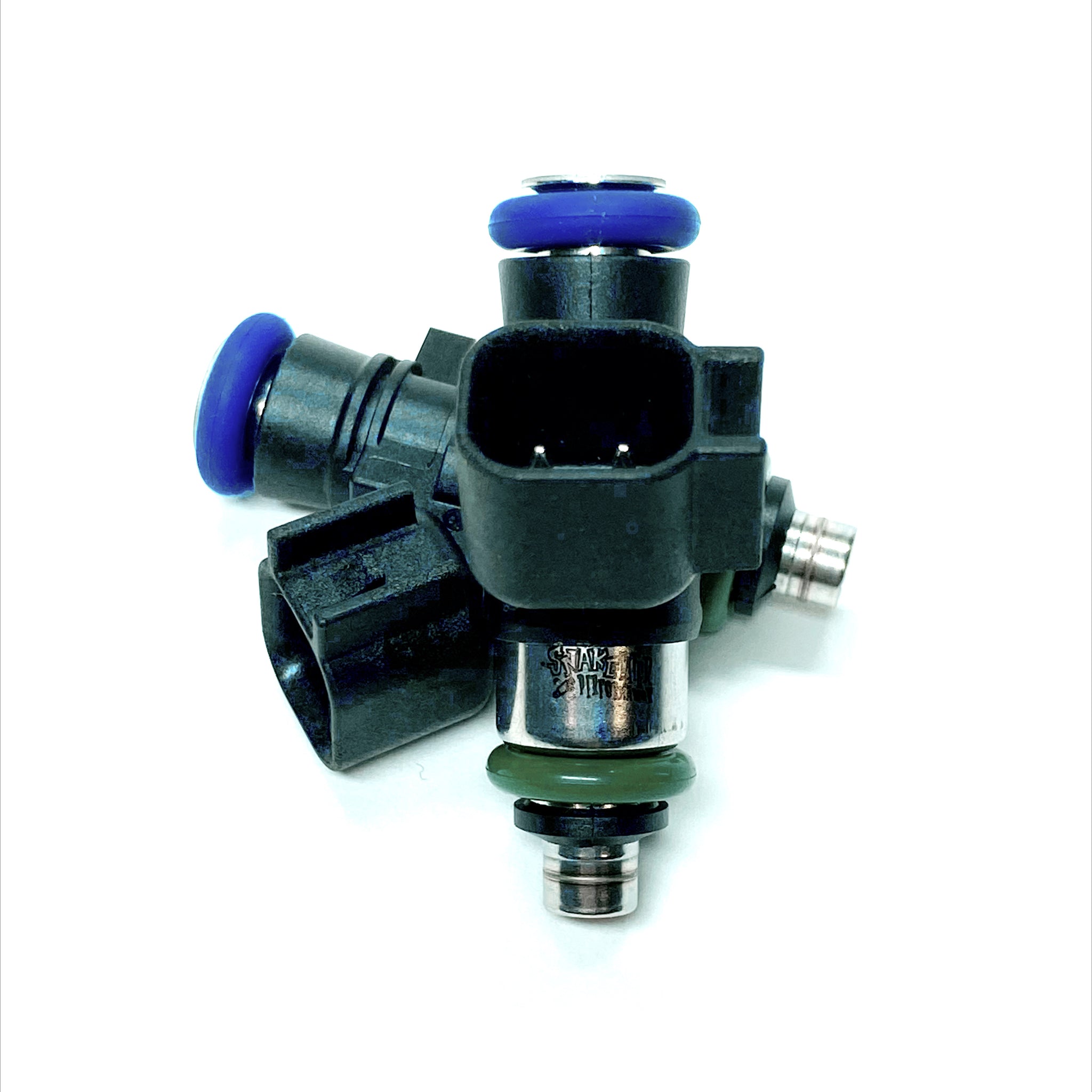

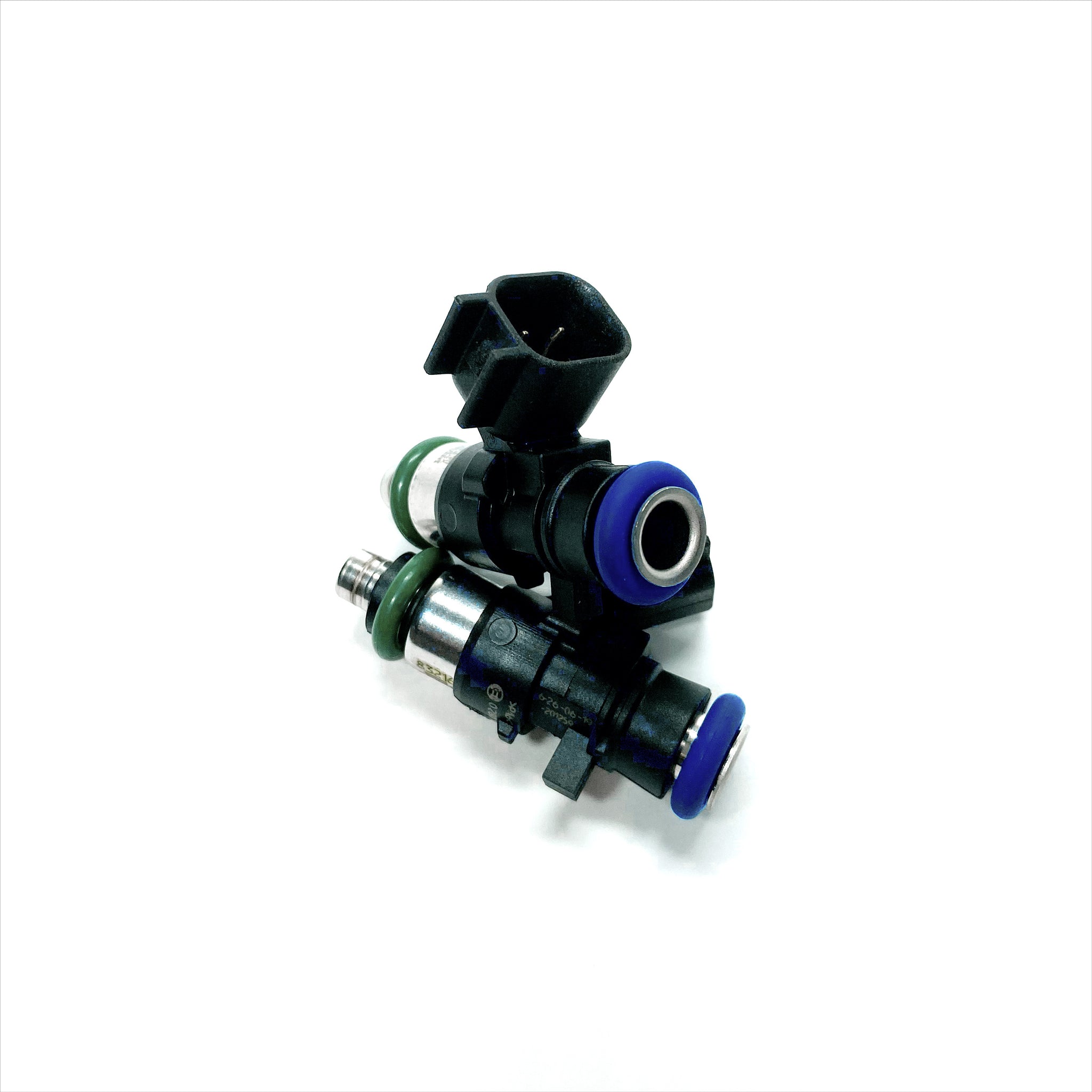

GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors
GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors

GB SEP / Bosch 34mm 735cc/min, 70lb/hr@43PSI Injectors

$59.99

Made in Germany in collaboration with Bosch, The Snake Eater "GB" line uses only the highest quality internal components, materials and is ran through an incredible amount of injections before arriving at your door.

The SEP "GB" line is our top of the line, no expense spared, closest flow and offset matched injector line. These injectors are intended for the customer who is scratch building a motor, intends to run high rpm for long duration or simply wants to trust their fuel system to the best name brand in fuel injection.

Testimonials: SEP GB Customer PTS Fab running SEP GB Injectors on Methanol

Injectors will be within 1% flow variance on a multi point dynamic test.

Full Injector Flow/Offset report included in package and Plug and Play ECU tuning data for all SEP Injectors included with purchase via email request. (Plug and Play ECU data/Injector characteristics provided by Calibrated Success Inc./Greg Banish)

Fuel Compatibility: Gasolines and Ethanol Flex fuel (Methanol is compatible but will void warranty use at your own risk)

Crank Horsepower Rating @58psi fuel pressure, 93 octane, V8 engine with 1 injector per cylinder: 950hp

Connector: USCAR (EV6)

Flow Rate @43psi: 735cc/min, 70lb/hr @58psi 850cc/min, 80lb/hr

High Impedance, 12.5 ohms coil

 *** It is IMPERATIVE when running high flow fuel injectors you run a 10 Micron inline aftermarket fuel filter system!!! Failing to do so will allow debris COMMONLY found in pump gasses into the injector body and begin to alter fuel flow rates and/or cause TOTAL FAILURE of fuel injectors voiding your warranty and damaging your engine***

Direct OEM Fitments FOR 34mm "LS3/LSA/PICO Style" (please reference your OEM plug style and choose the appropriate option or adapter)

Audi:

  • Audi EA888 Gen 3, R8 2015+, Audi RS3/TTRS
Ford:
  • Raptor 2017+
Hyundai:
  • Genesis V6 09-12

Volkswagen:

  • VW EA888 Gen 3

The following fitments will require lower o-ring PN: Acd 217-1624/Gm 89017587

 Cadillac:

  • CTS-V 09-14 (LSA)

Chevrolet:

  • Camaro ZL1 (LSA), Camaro 10-15 (LS3), C6 Corvette, C6 Z06 (LS7), C6 ZR1 (LS9), LS3, LS7, L76, L9H, L94, L99, L77, LSA, LS9

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
