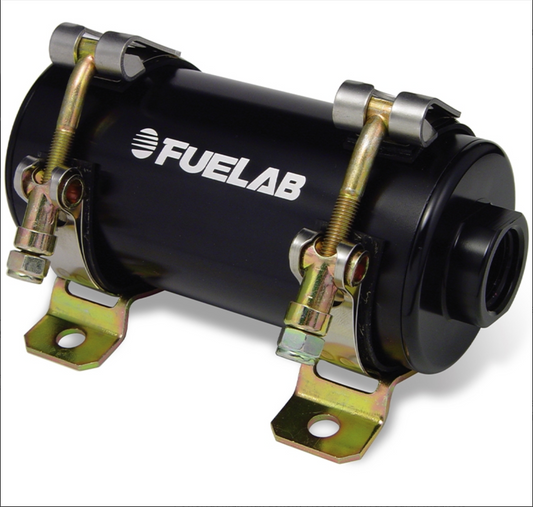

FUELAB Prodigy Variable Speed Brushless Fuel Pumps

FUELAB Prodigy fuel pumps work to keep your fuel cool. Their variable-speed operation helps to avoid fuel vaporization, allowing them to be run in continuous-duty operation for street or strip usage. They feature billet aluminum construction with an anodized finish, along with a unique housing shape for extremely quiet operation and steady pressure. The pumps use a lightweight, super-efficient DC brushless motor to reduce current draw; plus, carbon 9-vane construction with a low-mass, pressure-balanced rotor for high-speed reaction to changes in speed and flow; powerful, high-flux density neodymium rare earth magnets; and an internal variable-speed controller. FUELAB Prodigy fuel pumps work with 12 V or 16 V electrical systems and are compatible with gasoline, diesel, methanol, and ethanol fuels.

105 GPH @ 45 PSI, 125 PSI MAX - RATED UP TO 1000HP - The original brushless Prodigy fuel pump, great for performance, racing or off-road use.

Pump Features

Compatible with gasoline, diesel, methanol, and ethanol
High efficiency sling vane positive displacement pump
Special housing shape for extremely quiet operation and steady pressure
Carbon 9-vane construction with pressure balanced rotor for high reliability
Backed by a limited lifetime warranty

Motor Features

Lightweight super-efficient DC brushless motor reduces current draw
Low mass rotor for high speed reaction to changes in speed and flow
Powerful high flux density Neodymium rare earth magnets
No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

Internal speed controller for variable flow operation
12 to 24 volt vehicle electrical system compatibility
Accepts PWM input for speed control
No expensive add-on voltage regulators or pump controllers required!
Continuous duty–motor speed can be adjusted to meet fuel demand

Construction

Compact, lightweight design, less than 3 lbs, overall length 6.9", diameter 2.63"
Billet Aluminum Construction with anodize per MIL-A-8625, Type II
High quality mounting brackets included
Long-life, multi-fuel compatible Fluorosilicone static seals
Accepts standard or port style –10AN fittings

PWM Features

Compatible with most aftermarket ECU's with PWM output frequency
Compatible from 100Hz to 5000Hz
AEM
ECU Masters
Fueltech
Haltech
Holley
Link Engine Management
Megasquirt

Manufacturer information

Brand: FUELAB

Manufacturer's Part Number: 41401-1

Part Type: Fuel Pumps

Product Line: FUELAB Prodigy Variable Speed Brushless Fuel Pumps

Summit Racing Part Number: FUE-41401-1

UPC: 845096001483

Fuel Pump Type: Electric external

Flow Rate: 160 gph/606 lph

Fuel Pressure (psi): 125 psi

Fuel Pump Voltage: 12-24 V

Fuel Pressure Regulator Included: No

Sending Unit Included: No

Fuel Pump Inlet Size: -10 AN

Inlet Quantity: 1

Inlet Attachment: Female straight cut O-ring

Fuel Pump Outlet Size: -10 AN

Outlet Quantity: 1

Outlet Attachment:nFemale straight cut O-ring

Gasket Included: No

Wiring Harness Included: No

Mounting Bracket Included: Yes

Mounting Hardware Included: No

Pulley Included: No

Quantity: Sold individually.

Notes: Black anodized case, includes mounting bracket

FUELAB Prodigy Variable Speed Brushless Fuel Pumps

FUELAB Prodigy fuel pumps work to keep your fuel cool. Their variable-speed operation helps to avoid fuel vaporization, allowing them to be run in continuous-duty operation for street or strip usage. They feature billet aluminum construction with an anodized finish, along with a unique housing shape for extremely quiet operation and steady pressure. The pumps use a lightweight, super-efficient DC brushless motor to reduce current draw; plus, carbon 9-vane construction with a low-mass, pressure-balanced rotor for high-speed reaction to changes in speed and flow; powerful, high-flux density neodymium rare earth magnets; and an internal variable-speed controller. FUELAB Prodigy fuel pumps work with 12 V or 16 V electrical systems and are compatible with gasoline, diesel, methanol, and ethanol fuels.

Legal Disclaimer

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle

The following vehicles are considered Racing Use Only Vehicles:

Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle

Fuel Pumps

FUELAB 105 GPH PRODIGY VARIABLE SPEED BRUSHLESS FUEL PUMP

GB 300 lph 044 Universal In-line Fuel Pumps

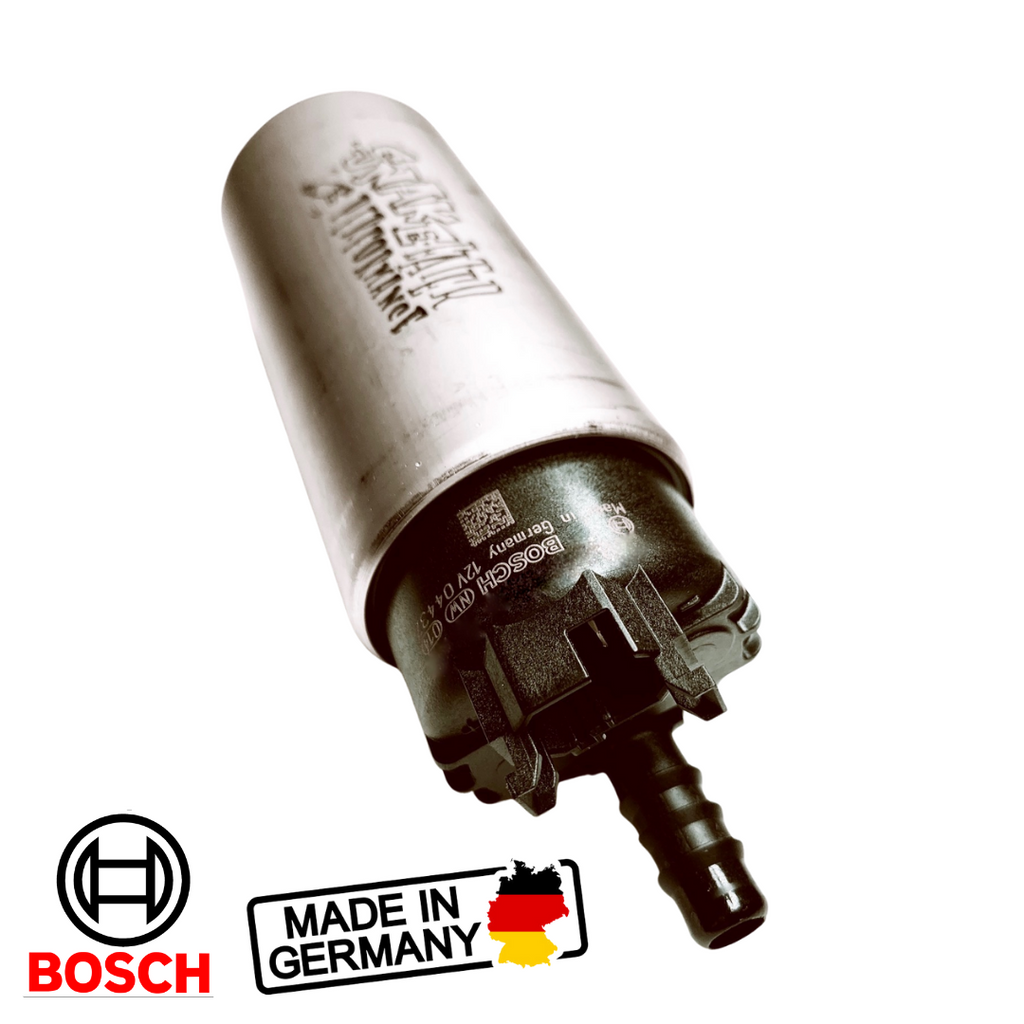

GB 415lph Bosch Fuel Pump - Universal In-Tank Fuel Pumps

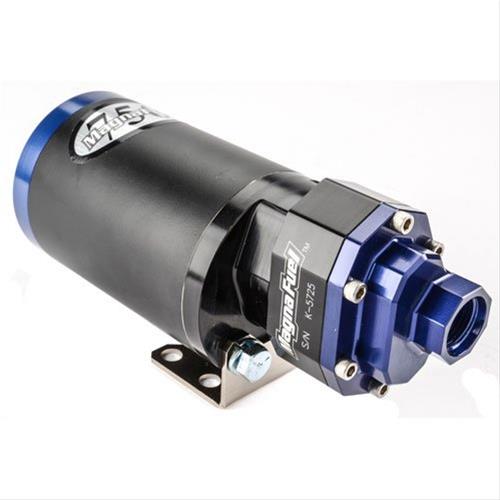

MagnaFuel ProTuner 750 Series In-Line Fuel Pumps MagnaFuel 4303
